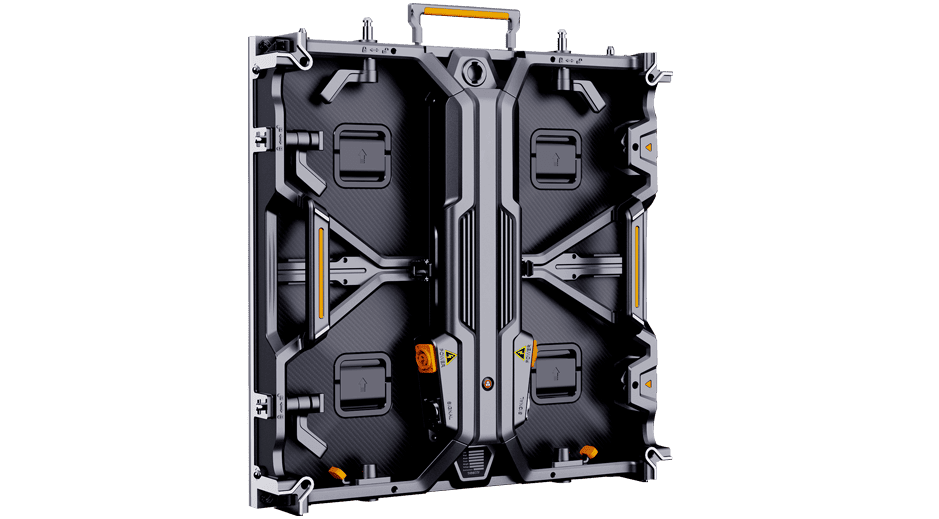

Umax-XR Series LED Wall for Virtual Production
XR Series is engineered specifically for virtual production, where the LED wall becomes part of the camera scene — not just a display.
Camera-Ready Performance
No scan lines. No reshoot.
7680Hz 16-bit grayscale
High contrast 10000:1
True Color from Any Angle
281Tri Color
Faster Setup, Lower Labor Cost
8kg/panel
Front & Rear Maintenance

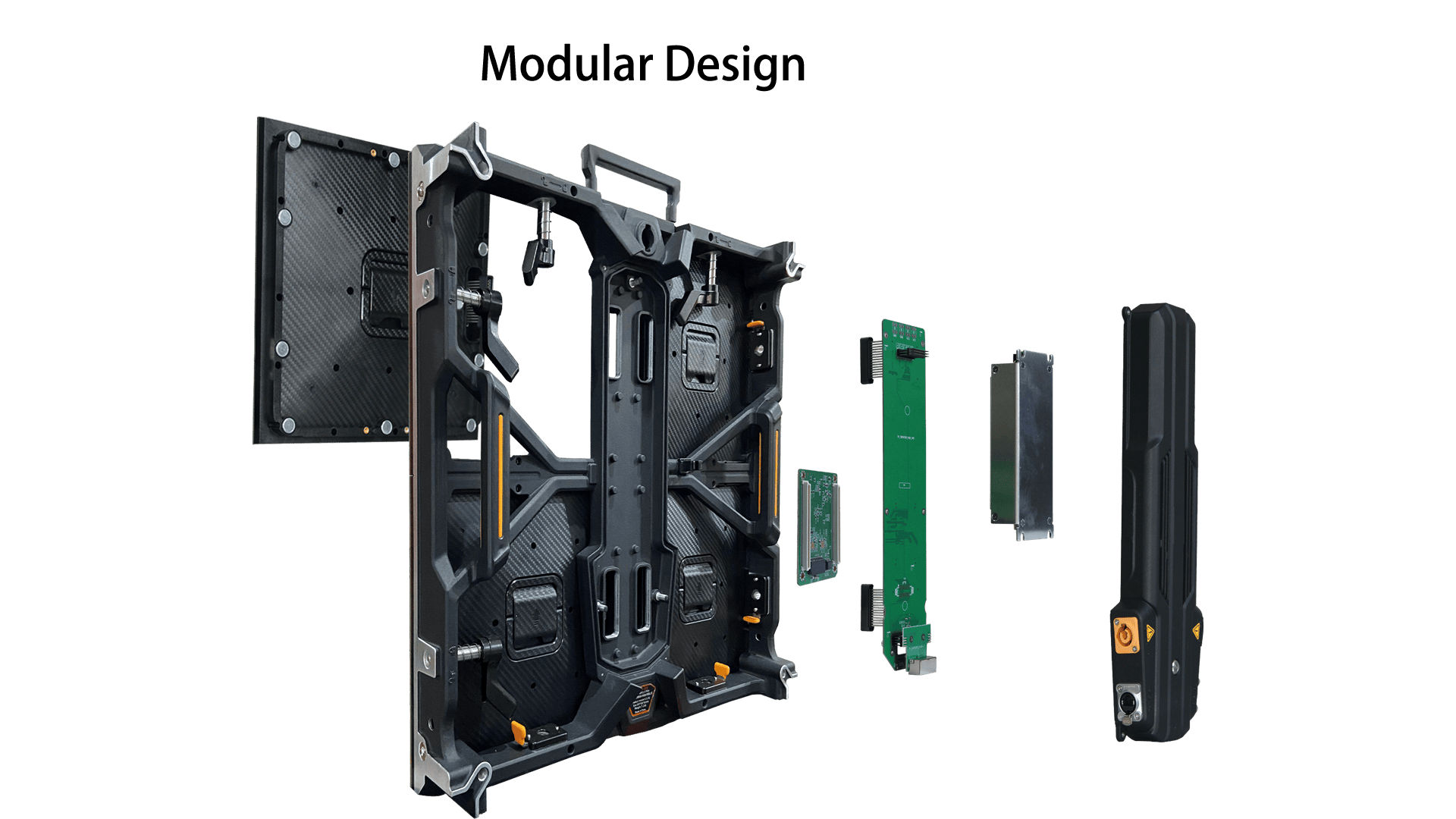

Magnetic modules and modular power box design
True Color from Any Angle
160° ultra-wide viewing angle keeps colors consistent across different camera positions.
? Why it matters:
More flexibility for directors and cinematographers.
High Resolution
1.95mm
2.31mm
2.6mm

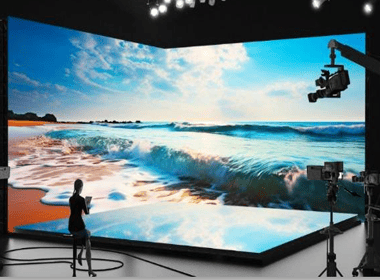

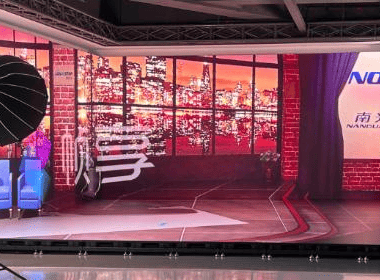

Application Scenarios
Where XR Series Is Used

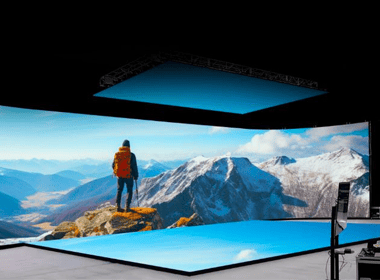

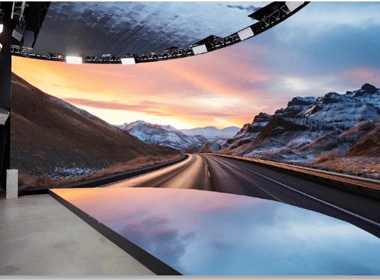

Virtual Production Studios, Broadcast & TV Recording, Commercial Filming, Live Events & Concerts, Brand Launches, Museums & Immersive Spaces
Technical Parameter
| Parameters / Product Model | Umax-XR1.95IRS | Umax-XR2.31IRS | Umax-XR2.6IRS | Umax-XR2.6IRS |
|---|---|---|---|---|
| Working Environment | Indoor rental | Indoor rental | Indoor rental | Indoor rental |
| Pixel Pitch （mm） | 1.95 | 2.31 | 2.6 | 2.6 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Pixel matrix per panel | 256×256 | 216x216 | 192x192 | 192x192 |
| Panel Dimensions (WxL)/（mm） | 500×500 | 500×500 | 500×500 | 500×500 |
| Panel material | Aluminum | Aluminum | Aluminum | Aluminum |
| Panel IP Rating (Front and Rear) | IP31 | IP31 | IP31 | IP31 |
| Panel weight (kgs) | 7.5 | 7.5 | 7.5 | 7.5 |
| Panel installation type | Rental | Rental | Rental | Rental |
| Installation Access | Front/Back access | Front/Back access | Front/Back access | Front/Back access |
| Color Grayscale (Bit) | 16 | 16 | 16 | 16 |
| Gray Scale per Color （level) | 65536 | 65536 | 65536 | 65536 |
| Refresh Rate（Hz） | 7680 | 7680 | 7680 | 3840 |
| Driving Type | 1/8 | 1/9 | 1/8 | 1/8 |
| Brightness (cd/㎡) | 1500 | 1500 | 1500 | 1500 |
| Calibration | YES | YES | YES | YES |
| Optimal Horizontal Viewing Angle（°） | 160 | 160 | 160 | 160 |
| Optimal Vertical Viewing Angle（°） | 140 | 140 | 140 | 140 |
| AC Input Voltage（V） | 90~240 | 90~240 | 90~240 | 90~240 |
| MAX power consumption（W/Panel） | 120 | 100 | 100 | 95 |
| Average power consumptio（W/Panel） | 50~80 | 30~45 | 30~45 | 25~40 |
| Storage Temperature（℃） | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature（℃） | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Storage Humidity（RH） | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ |
| Operating Humidity（RH） | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ |
| Lifetime Typical Value（hrs） | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificate | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||
