Pard Series

Pard Series-- Cutting-edge Technology

Patented product

All sealed modular design, Unique heat dissipation design

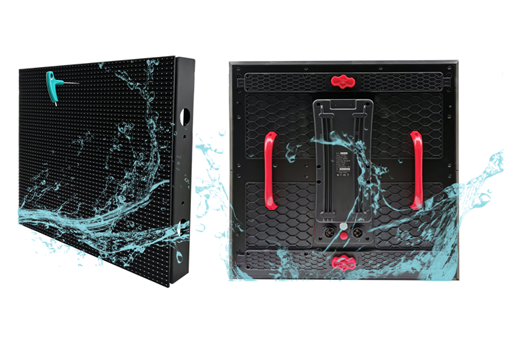

IP66, capable to work in harsh environment

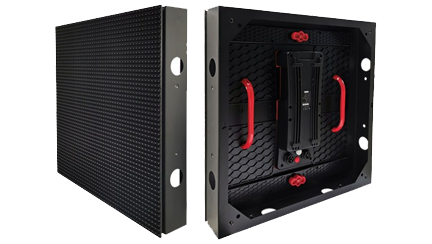

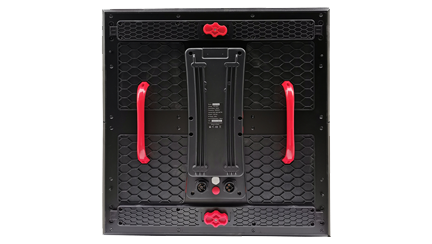

Totally Front & Rear Service

High-end magnificent in appearance, concise and beautiful

Featured by High Brightness based on big chip Gold-Wire LEDs

lighter of a standard display than competition

3.81mm,4.76mm,6.36mm,9.525mm(Outdoor)

Fast Installation & dismantling within 8s, greatly save time.
Width 78mm only, extremely slim.

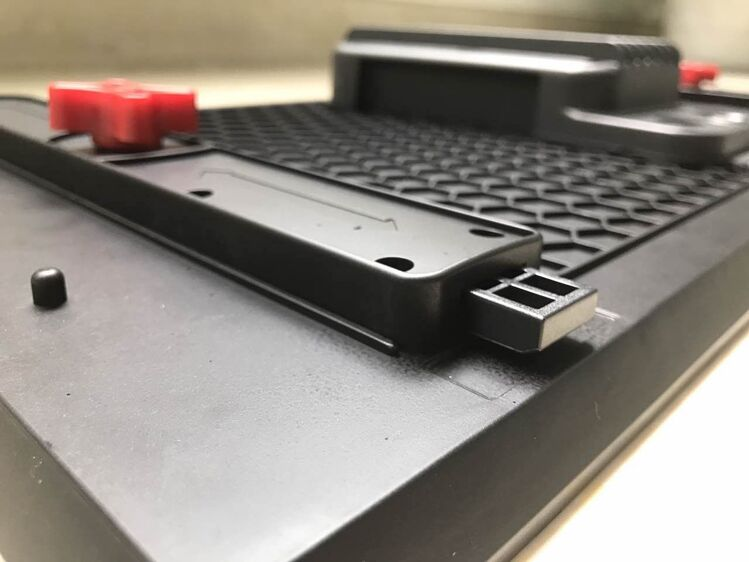

Aluminum control box

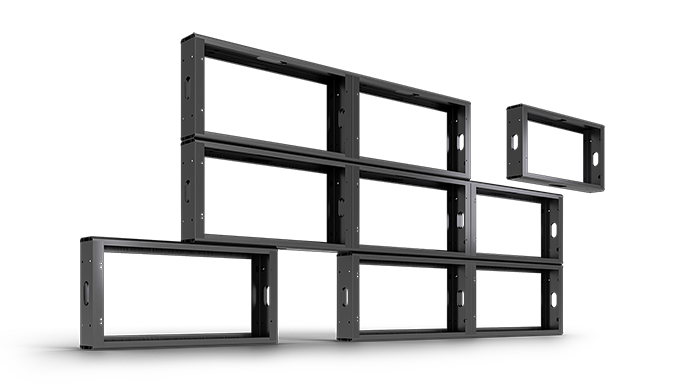

You can always share the most advanced LED display technology of Pard series in future. All the module types are inter

changeable and with same quick connect fasteners. With nothing to change of the existing structure, you can easily

retrofit & upgrade a double sided 4x8' sign in half one hour!

Horizontal

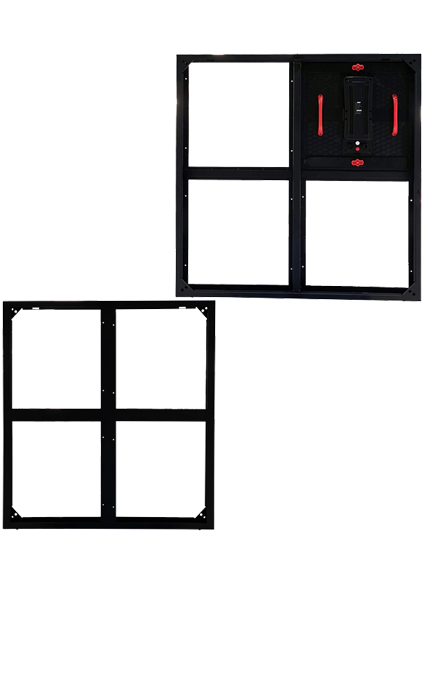

Vertical

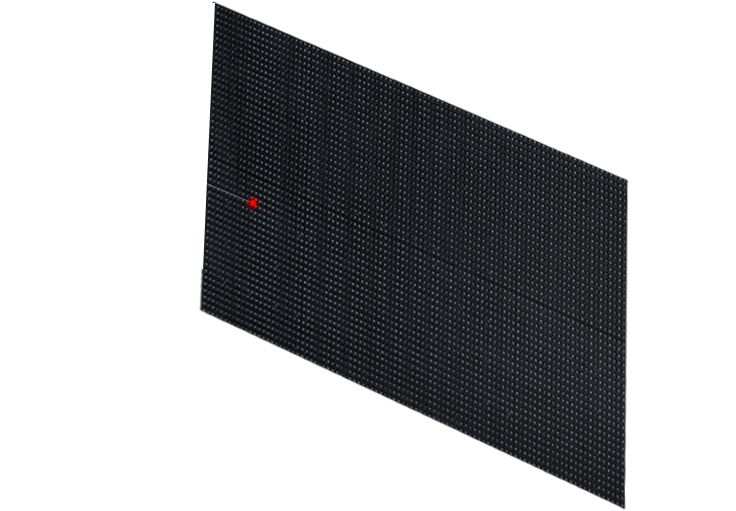

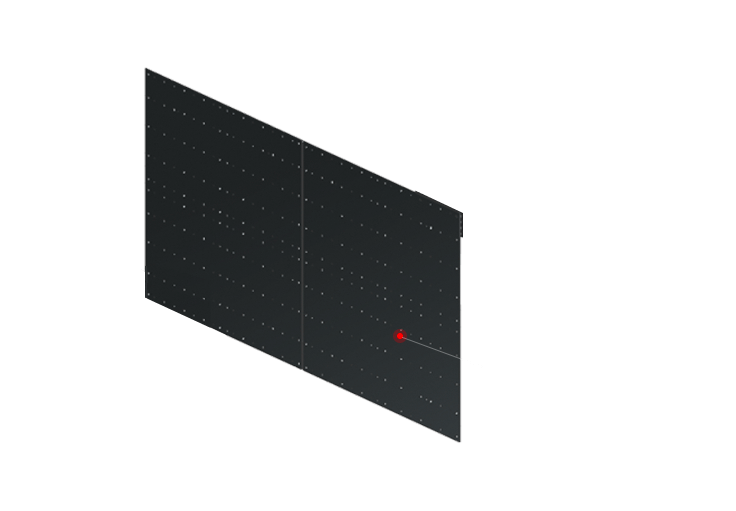

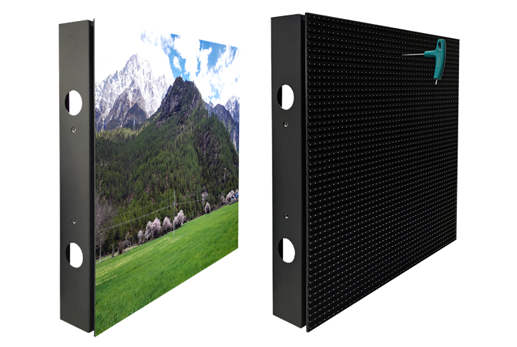

The whole module is completely sealed with silicone gel

3.81mm

4.76mm

6.35mm

9.525mm

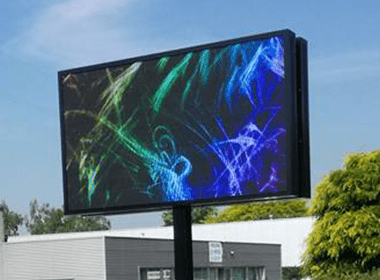

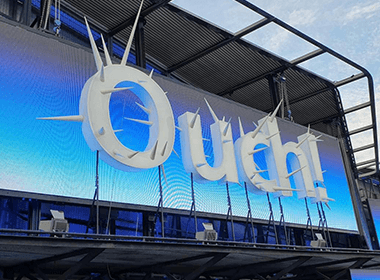

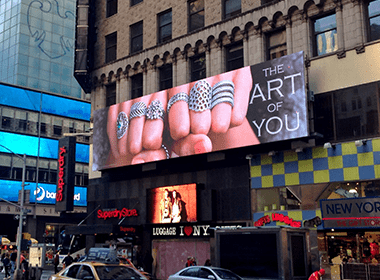

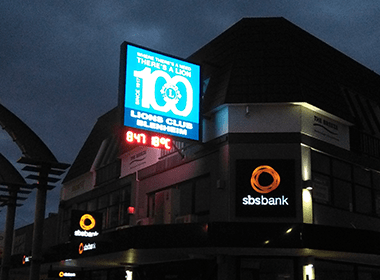

Full color outdoor LED displavs are widely used in transportation, schools. media, government projects,

finance, telecommunications and other industries.

Parameters / Product Model	PA-PH3.81S	PA-PH4.76S	PA-PH6.35S	PA-PH9.52S
Working Environment	Outdoor	Outdoor	Outdoor	Outdoor
Pixel Pitch （mm）	3.81	4.76	6.35	9.525
Pixel Configuration	SMD1921	SMD1921	SMD2727	SMD2727
Pixel matrix per panel	160×90	128x72	96x54	64x36
Panel Dimensions (WxL)/（mm）	606.9×342.9	606.9×342.9	606.9×342.9	606.9×342.9
Panel material	Aluminum	Aluminum	Aluminum	Aluminum
Panel IP Rating (Front and Rear)	IP66/IP66	IP66/IP66	IP66/IP66	IP66/IP66
Panel weight (kgs)	3.5	3.5	3.5	3.5
Panel installation type	Fixed	Fixed	Fixed	Fixed
Installation Access	Front/Back access	Front/Back access	Front/Back access	Front/Back access
Color Grayscale (Bit)	16	16	16	16
Gray Scale per Color （level)	65536	65536	65536	65536
Refresh Rate（Hz）	2880	2880	2880	2880
Driving Type	1/12	1/8	1/4	1/4
Brightness (cd/㎡)	5500	6500	6500	6500
Calibration	YES	YES	YES	YES
Optimal Horizontal Viewing Angle（°）	140	140	140	140
Optimal Vertical Viewing Angle（°）	120	120	120	120
AC Input Voltage（V）	90~240	90~240	90~240	90~240
MAX power consumption（W/Panel）	247	239	231	208
Average power consumptio（W/Panel）	74	72	69	63
Average power consumptio（W/Panel）	74	72	69	63
Storage Temperature（℃）	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60
Operating Temperature（℃）	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60
Storage Humidity（RH）	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪
Operating Humidity（RH）	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪
Lifetime Typical Value（hrs）	100,000	100,000	100,000	100,000
