![1629856904435981.png H 3.png](/upload/image/20210825/1629856904435981.png)

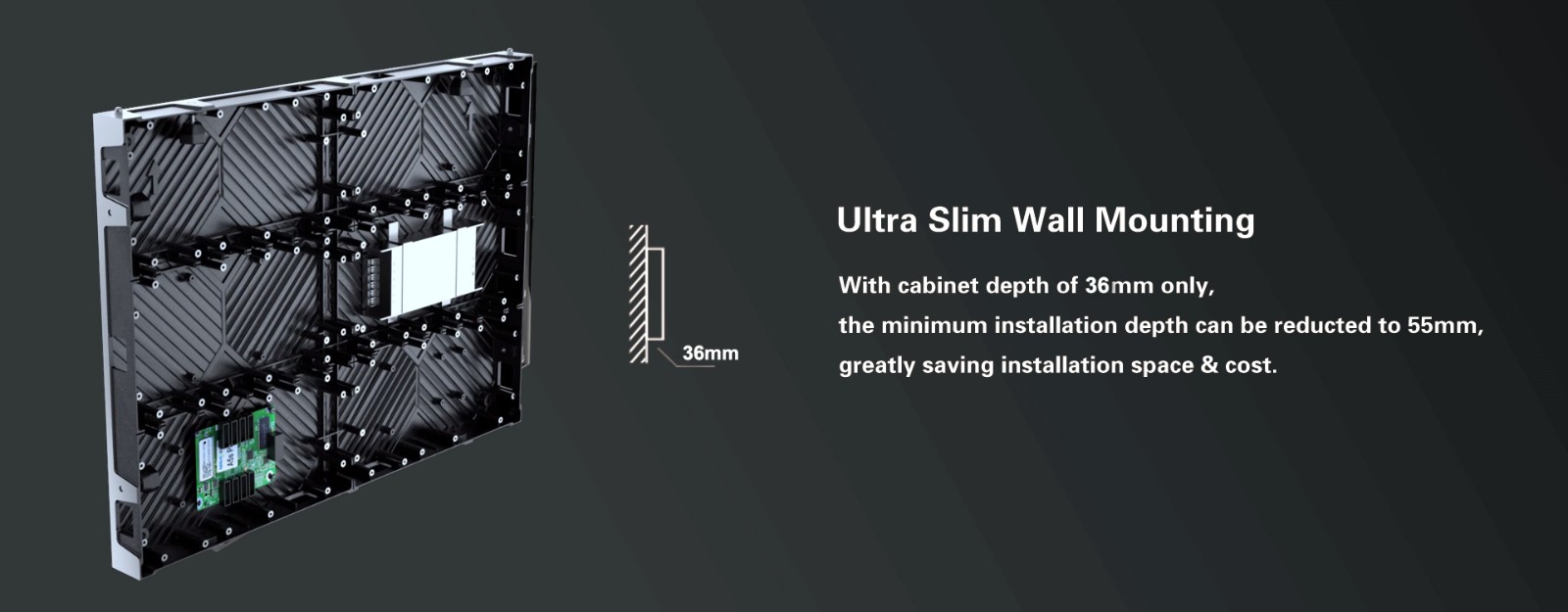

36mm
![1629876418936423.png 2.png](/upload/image/20210825/1629876418936423.png)
Ultra-thin
3840Hz
![1629968705836132.jpg 图标.jpg](/upload/image/20210826/1629968705836132.jpg)
High refresh rate
281 Trillion
![1629876428774176.png 1.png](/upload/image/20210825/1629876428774176.png)
Color
4.5kg/pc
![1629876436124871.png 3.png](/upload/image/20210825/1629876436124871.png)
![1629876158938997.png H 3.png](/upload/image/20210825/1629876158938997.png)
![1629857279831664.png 爆炸图 3.png](/upload/image/20210825/1629857279831664.png)
![1629857272147548.png 爆炸图 2.png](/upload/image/20210825/1629857272147548.png)
![1629857265515747.png 爆炸图 1.png](/upload/image/20210825/1629857265515747.png)
![](/wstmart/home/view/default/images/pro2.jpg)
High Resolution
![1629890081961122.png 1-1.png](/upload/image/20210825/1629890081961122.png)
0.9mm
![1629890081961122.png 1-1.png](/upload/image/20210825/1629890081961122.png)
1.2mm
![1629890095953782.png 2-2.png](/upload/image/20210825/1629890095953782.png)
1.5mm
![1629963211596740.png 3-3.png](/upload/image/20210826/1629963211596740.png)
1.8mm
![1629890113707635.png 4-4.png](/upload/image/20210825/1629890113707635.png)
2.5mm

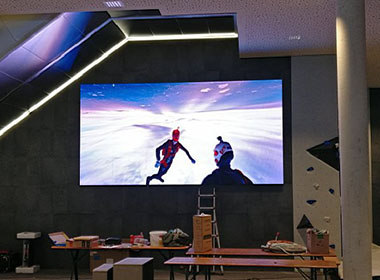

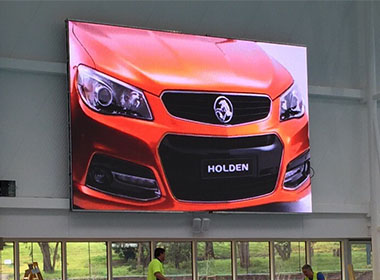

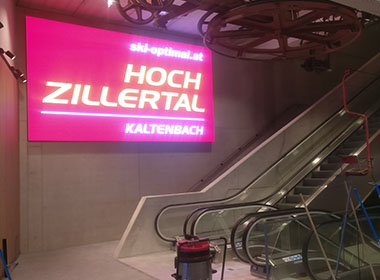

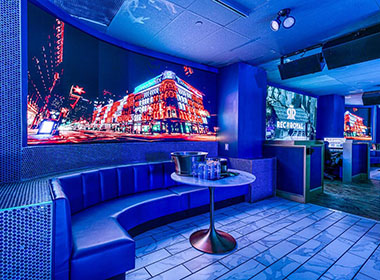

Application Scenarios
Full color outdoor LED displavs are widely used in transportation, schools. media, government projects,
finance, telecommunications and other industries.
Technical Parameter
Model Number | T-P0.93-L1A | T-P1.25-L1A | T-P1.56-L1A | T-P1.87-L1A |
---|---|---|---|---|
Pixel Pitch | 0.93 mm | 1.25 mm | 1.56 mm | 1.87 mm |
Cabinet resolution | 640 x 360 Pixels | 480x 270 Pixels | 384 x 216 Pixels | 320 x 180 Pixels |
Brightness (6000K color temperature) | 500cd~1000cd/㎡ | 500cd~1000cd/㎡ | 500cd~1000cd/㎡ | 500cd~1000cd/㎡ |
Pixel density | 1137778 dots/㎡ | 640000 dots/㎡ | 409600 dots/㎡ | 284444 dots/㎡ |
Pixels constitution | IMD-09 | SMD1010 | SMD1212 | SMD1515 |
Cabinet weight | 4.5kg | |||
Cabinet dimensions | 600mm×337.5mm×36mm | |||
Gray scale | 16 bit | |||
Contrast ratio | 5000:1 | |||
Peak consumption | ≤600W/㎡ | |||
Average consumption | 100W/㎡~300W/㎡ | |||
screen color temperature | 2000-9500K Adjustable | |||
Module flatness | ≤0.1mm | |||
Horizontal viewing angle / Vertical viewing angle | 160°/140° | |||
Refresh rate | High refresh rate≥3000Hz | |||
Frame rate | 50-60Hz | |||
Working voltage | AC:95V~240V | |||
Power supply mode | DC / ACPower supply(Options) | |||
Ingress protection rating | IP41 | |||
LED life-time | 100,000h | |||
Viewing distance | ≤0.1mm | |||
screen temperature raise(Under normal use) | ≤20Celsius degree | |||
Pixel calibration | Brightness and chromatic pixel calibrations | |||
Control method | Synchronous / Asynchronous control | |||
Driving method | Constant current drive | |||
Cabinet material | Die-casting aluminium case | |||
Heat dissipation method | Electronics passive cooling,entire unit air-flow cooling | |||
MTBF | ≥10000 Hours | |||
Power-backup | Dual backup power supply(optional) | |||
Signal backup | Dual backup signal(optional) | |||
Transmission distance | CAT5 ,Optic fiber cables when exceed 100 meters | |||
Working temperature/humidity | -10~+60℃ / 10%~90%RH,No condensation | |||
Installation way | Mount-bracket / Wall-mount / Frame mount | |||
Maintenance | Front service |
