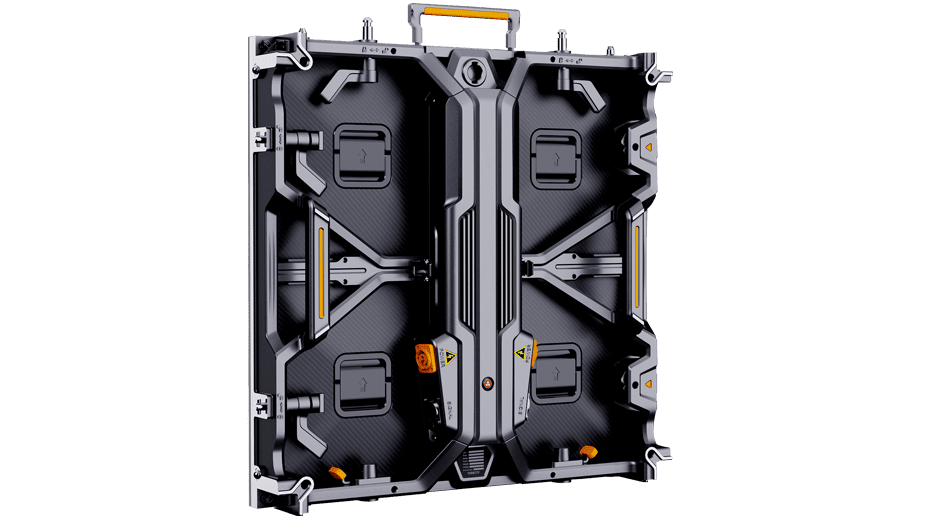

Umax Fine Pitch Rental LED Display
The U-MAX Series is designed for indoor rental projects that demand more than a standard LED cabinet. With fine pixel pitch options, full front service, curved locking, and a 45° corner solution, it helps rental companies build cleaner, smarter, and more flexible displays for conferences, exhibitions, studios, launches, and live events.

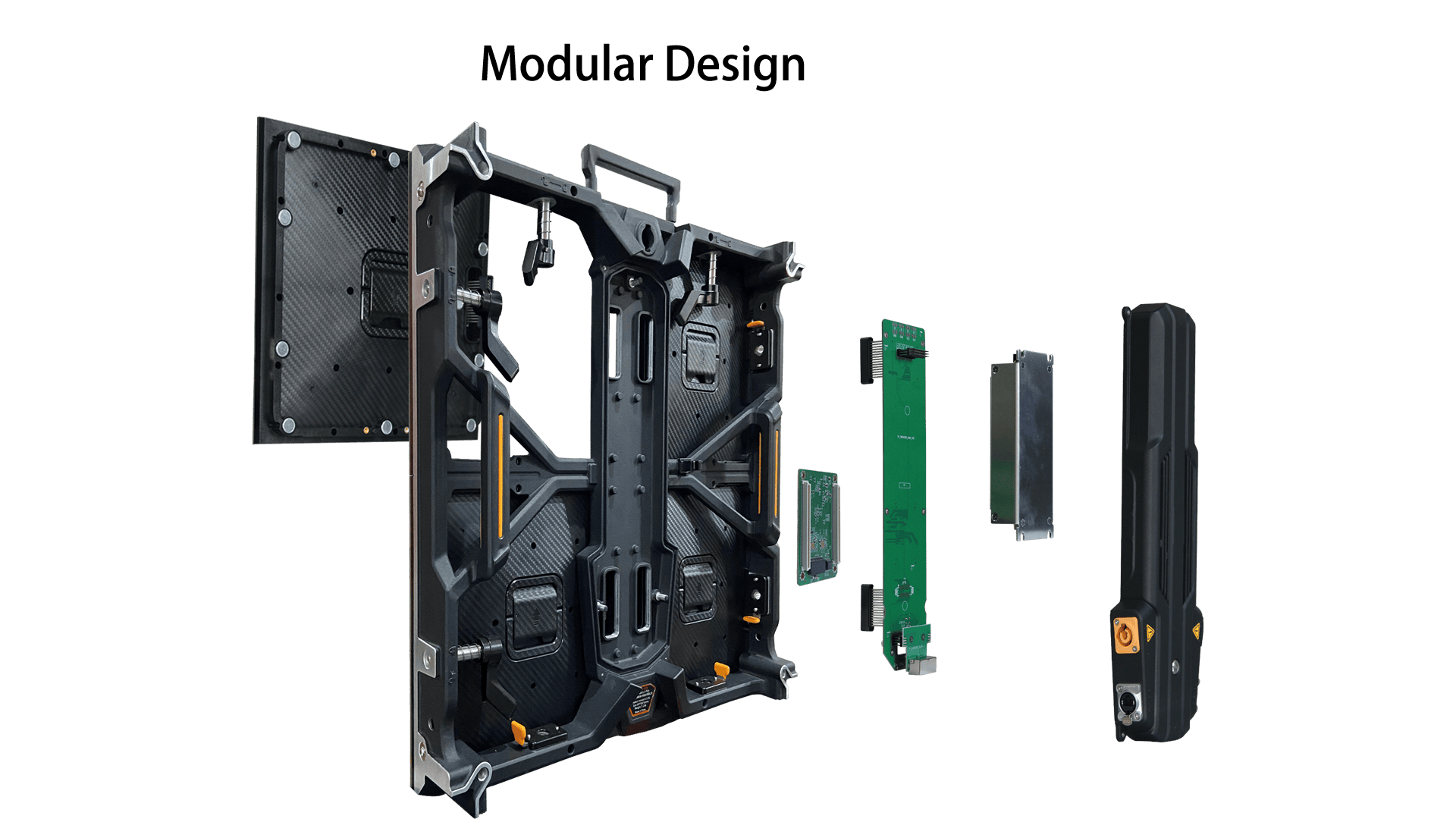

Full Front Service

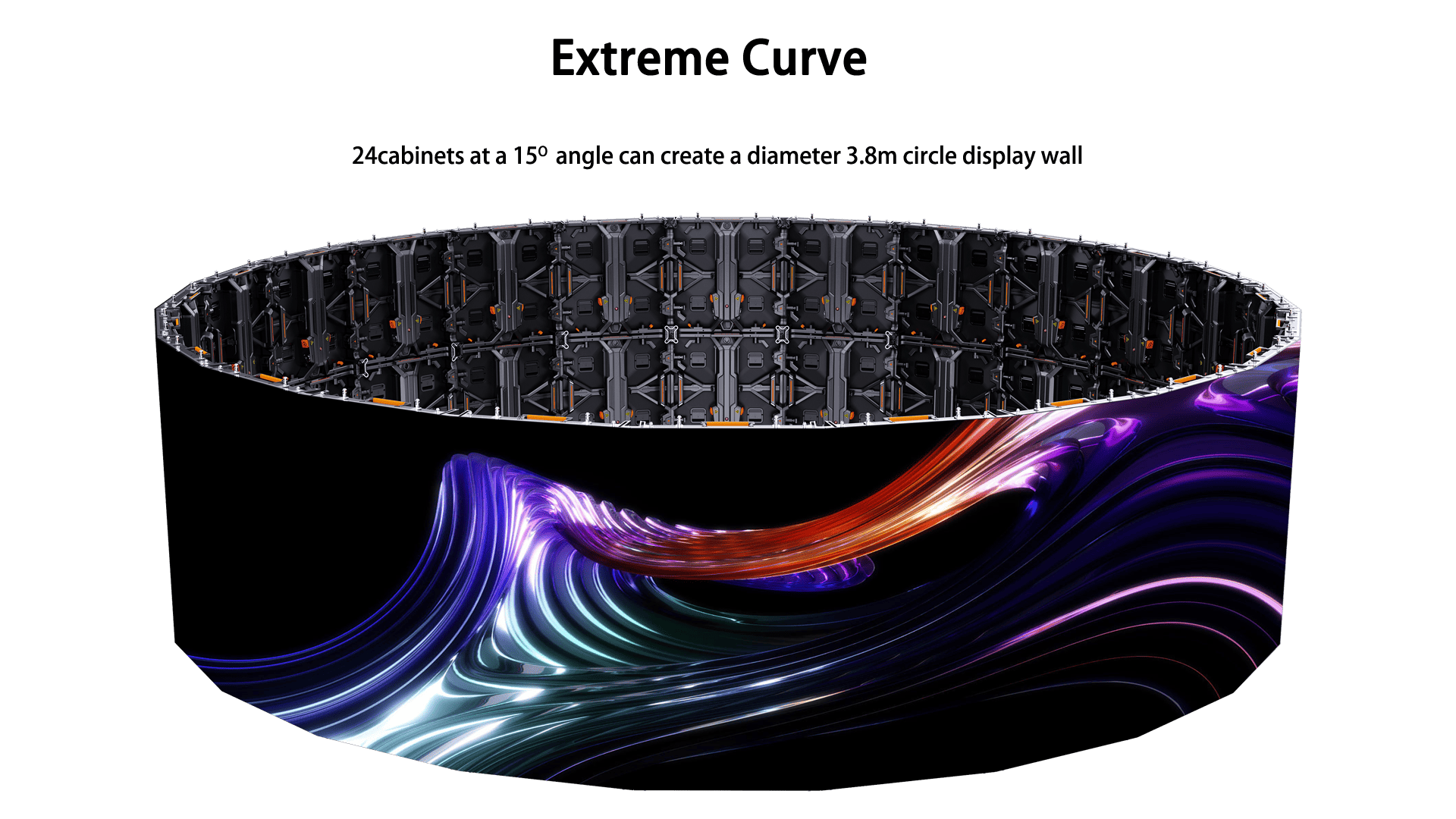

24 Cabinets Form One Circle
7680Hz
High refresh rate
281 Trillion
Color
7.5kg/pc
45° Beveled Design
45° Cabinet Design for More Creative Screen Shapes
Not every project should end with a flat LED wall.

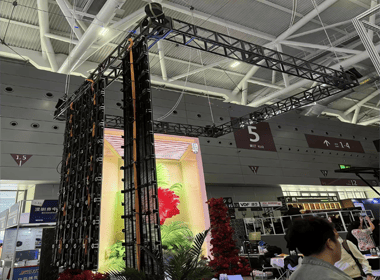

The U-MAX Series is built for more creative staging possibilities. With a 45° corner solution, it can support more distinctive screen structures such as corners, cubes, columns, and other customized event layouts.
This helps rental companies offer more design options with one cabinet system — and makes the screen part of the stage design, not just the background.
More shape flexibility. More project possibilities.
High Resolution
1.56mm
1.95mm
2.6mm
2.9mm
3.9mm

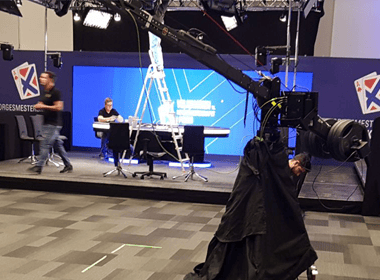

Application Scenarios
The U-MAX Series is ideal for projects that need both refined image quality and flexible staging:

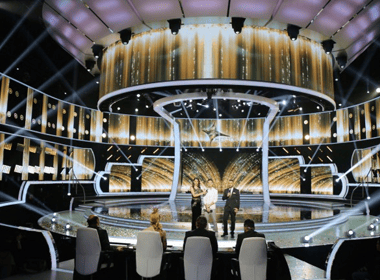

Corporate events, Product launches, Exhibitions and trade shows, TV studios, Fashion shows, Concert backdrops, Brand showrooms, Immersive display spaces
Whether the goal is a clean flat wall, a curved stage screen, or a circular visual structure, the U-MAX Series gives rental teams more ways to deliver high-value projects.
Technical Parameter
| Parameters / Product Model | Umax-P1.25IRS | Umax-P1.56IRS | Umax-P1.95IRS | Umax-P2.6IRS |
|---|---|---|---|---|
| Working Environment | Indoor rental | Indoor rental | Indoor rental | Indoor rental |
| Pixel Pitch （mm） | 1.25 | 1.56 | 1.95 | 2.6 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Pixel matrix per panel | 400×400 | 320x320 | 256x256 | 192x192 |
| Panel Dimensions (WxL)/（mm） | 500×500 | 500×500 | 500×500 | 500×500 |
| Panel material | Aluminum | Aluminum | Aluminum | Aluminum |
| Panel IP Rating (Front and Rear) | IP41 | IP41 | IP41 | IP41 |
| Panel weight (kgs) | 7.5 | 7.5 | 7.5 | 7.5 |
| Panel installation type | Rental | Rental | Rental | Rental |
| Installation Access | Front/Back access | Front/Back access | Front/Back access | Front/Back access |
| Color Grayscale (Bit) | 16 | 16 | 16 | 16 |
| Gray Scale per Color （level) | 65536 | 65536 | 65536 | 65536 |
| Refresh Rate（Hz） | 7680 | 7680 | 7680 | 3840 |
| Driving Type | 1/50 | 1/40 | 1/32 | 1/24 |
| Brightness (cd/㎡) | 500~1000 | 500~1000 | 500~1000 | 500~1000 |
| Calibration | YES | YES | YES | YES |
| Optimal Horizontal Viewing Angle（°） | 160 | 160 | 160 | 160 |
| Optimal Vertical Viewing Angle（°） | 140 | 140 | 140 | 140 |
| AC Input Voltage（V） | 90~240 | 90~240 | 90~240 | 90~240 |
| MAX power consumption（W/Panel） | 120 | 100 | 100 | 95 |
| Average power consumptio（W/Panel） | 50~80 | 30~45 | 30~45 | 25~40 |
| Storage Temperature（℃） | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature（℃） | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Storage Humidity（RH） | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ |
| Operating Humidity（RH） | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ | 10﹪~95﹪ |
| Lifetime Typical Value（hrs） | 100,000 | 100,000 | 100,000 | 100,000 |
Swipe Right To See More
