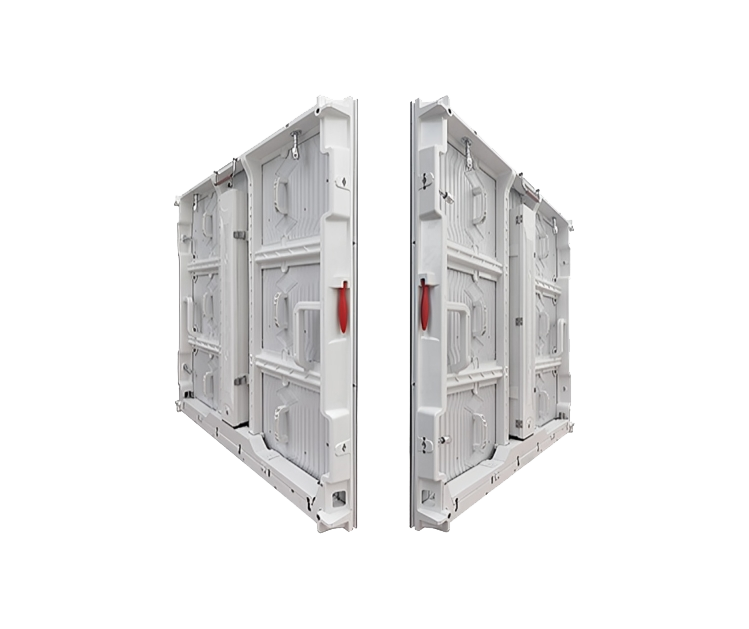

![1716447203883027.png UT 3.png](/upload/image/20240523/1716447203883027.png)
10000nits
![1629966336461774.png pro1-1.png](/upload/image/20210826/1629966336461774.png)
Featured by High Brightness based on big chip Gold-Wire LEDs
44%
![1629965723473428.png 3.png](/upload/image/20210826/1629965723473428.png)
lighter of a standard display than competition
High Resolution
![1629966351657811.png 图标4.png](/upload/image/20210826/1629966351657811.png)
4mm, 5mm, 6.67mm, 8mm,10mm
IP66
![1629969036243275.png 图标4.png](/upload/image/20210826/1629969036243275.png)
Waterproof
![1716447228836556.png UT 3.png](/upload/image/20240523/1716447228836556.png)

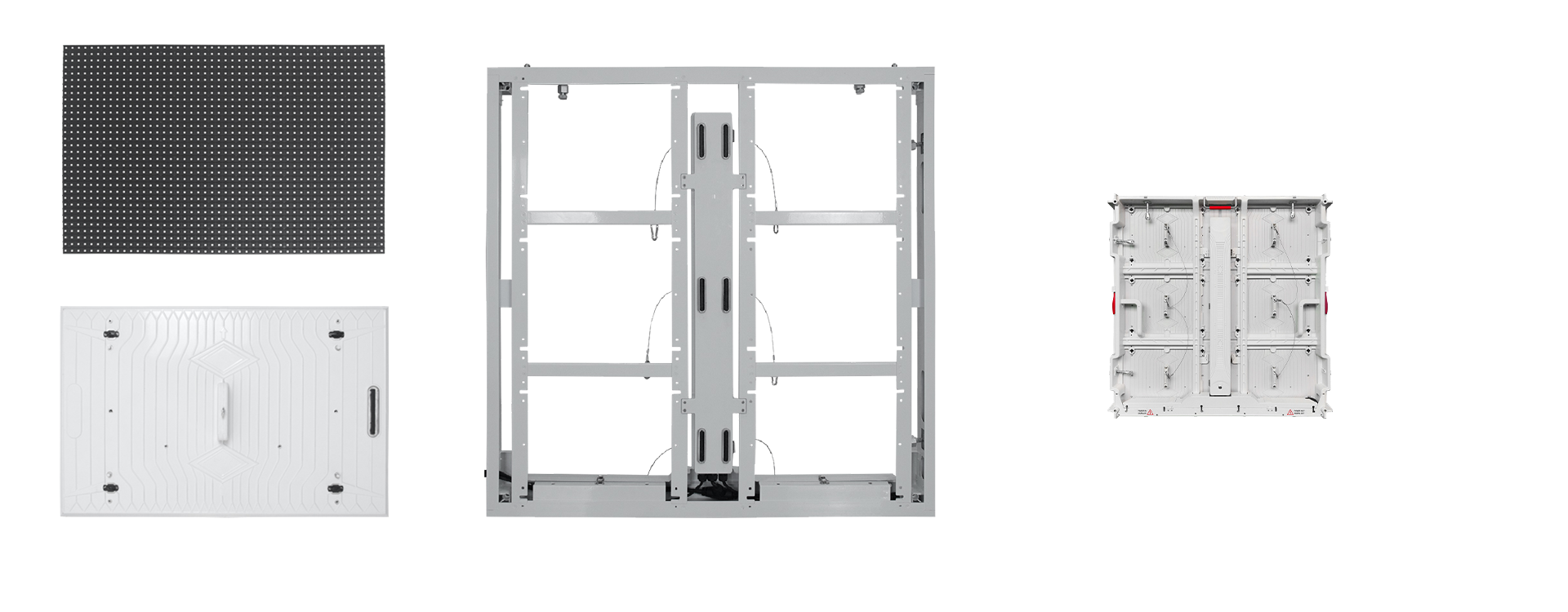

![1716457688632048.png Utt .png](/upload/image/20240523/1716457688632048.png)
![](/wstmart/home/view/default/images/pro2.jpg)
![1716457699137420.png utt engery saving .png](/upload/image/20240523/1716457699137420.png)
![1716457725539703.png Wall mounted .png](/upload/image/20240523/1716457725539703.png)
High Resolution
![](/wstmart/home/view/default/images/pro7-1.jpg)
4.4mm
![](/wstmart/home/view/default/images/pro7-2.jpg)
5.7mm
![](/wstmart/home/view/default/images/pro7-3.jpg)
6.67mm
![](/wstmart/home/view/default/images/pro7-4.jpg)
8mm
![](/wstmart/home/view/default/images/pro7-5.jpg)
10mm

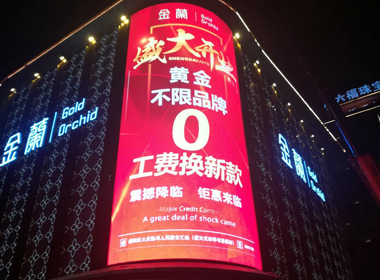

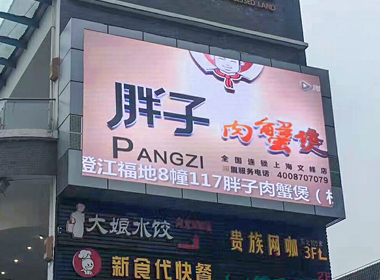

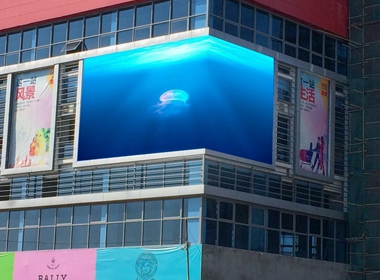

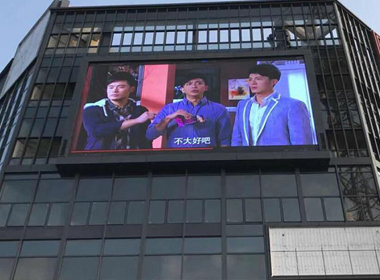

Application Scenarios
Full color outdoor LED displavs are widely used in transportation, schools. media, government projects,
finance, telecommunications and other industries.
Technical Parameter
MODEL NUMBER | UT-P4OS | UT-P5OS | U-P6.67OS | UT-P8OS | UT-P10OS |
---|---|---|---|---|---|
Pixel pitch | 4 | 5 | 6.67 | 8 | 10 |
LEDs | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD1921 |
Density of pixel/sqm | 62500 | 40000 | 22477 | 15625 | 10000 |
Resolution/module | 120*80 | 96*64 | 72*48 | 60*40 | 48*32 |
viewing angle/horizontal | 140° | 140° | 140° | 140° | 140° |
Viewing angle/Vertical | 120° | 120° | 120° | 120° | 120° |
Average power/sqm | 168W | 168W | 168W | 168W | 168W |
Max power/sqm | 500W | 500W | 500W | 500W | 500W |
Driving Method | 1/10Scan | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3000HZ |
Brightness | ≥6000cds/㎡ | ≥6000cds/㎡ | ≥6000cds/㎡ | ≥6000cds/㎡ | ≥7000cds/㎡ |
Working environment | Outdoor | ||||
Waterproof | IP66 | ||||
LED module size | 480*320mm | ||||
Grey scale/display color | 65536/display 16.7M | ||||
frame frequency | ≥60HZ | ||||
Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable | ||||
Input signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITONS | ||||
Control system | Colorlight and Novastar | ||||
System Operation Platform | Windows | ||||
Malfunction do rate | <0.0001 | ||||
Working Voltage | AC 90V TO 240V | ||||
Earth leakage current | <0.1mA | ||||
working / Storage temperature | working -30℃~60℃ storage -40℃~85℃ |
